AW9-Outdoor Unit-V5+

Energy Save Fläkt

Energy Save Evaporator AVH-24V1DB / Fin:1,8 mm; 608mm X 320mm X 675mm

Energy Save EEV 2.2C-14, R410A,o2.2mm core

Energy Save Låg tryck givare - 35CP02-03158020XS00F5H

Energy Save Hög tryck givare - 35CP02-06158050XS00F5H

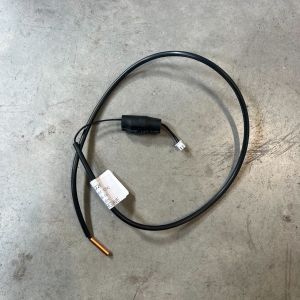

Energy Save Temp. givare - NTC5K, Ts, Black cable; L=1,8m

Energy Save Temp. givare - NTC50K, Td, Black cable; L=2m

Energy Save EEV Spole 9/11/13 kW R410A

Energy Save Kompressor - NP9/11/13-V7

Energy Save 1/2" ventil - Out

Energy Save 3/8" ventil - Out

Energy Save Four-way ventil, SHF-7H-34U-P - Energy Save

Energy Save Four-way ventil spole NP6,9,11,13

Energy Save Hög tryck brytare - OFF:4,2MPa;ON:3,6MPa

Energy Save Temp. givare SET- NTC5K, Ta+Tp, Black cable; L=1,8m

Energy Save Botten platta värmare L=1060mm; 140W

Energy Save Kompressor värmare L=365mm; 30W

Energy Save Kompressor drive NP9/11/13-V7 - Energy Save

Energy Save Tryck meter refrigerant Utomhus

Energy Save PFC transducer

Energy Save Fläkt motor, NIDEC SIC-65FV-F160-2/DC310V; 8P; Class E;
